Edge Light Systems
3:rock supplies the full edge light systems range — 3 systems.
Ask about this range →Looking for a stylish and functional aluminium system for illuminated signage? 3:rock offers a wide range of aluminium Edgelight systems suitable for various applications in the sign industry. View our products available directly from stock or contact us for a bespoke solution.
Within the Edgelight systems category, you will find various solutions specifically designed to ensure even light distribution. Ideal for use in light boxes, displays or totems. Perfect for both indoor and outdoor applications.
The systems are available in standard lengths or fully made to measure, including matching mounting components, connectors or a finish in the desired RAL colour. Thanks to the modular design, you can easily select the right solution for any type of display or illuminated signage.
3:rock combines many years of experience with a wide and flexible range of aluminium profiles for the sign industry. Our Edgelight systems are designed with attention to detail, durability and ease of use. Thanks to smart constructions, you benefit from fast assembly, a clean finish and uniform light distribution. We are happy to advise you!
Products
EdgeLight 45

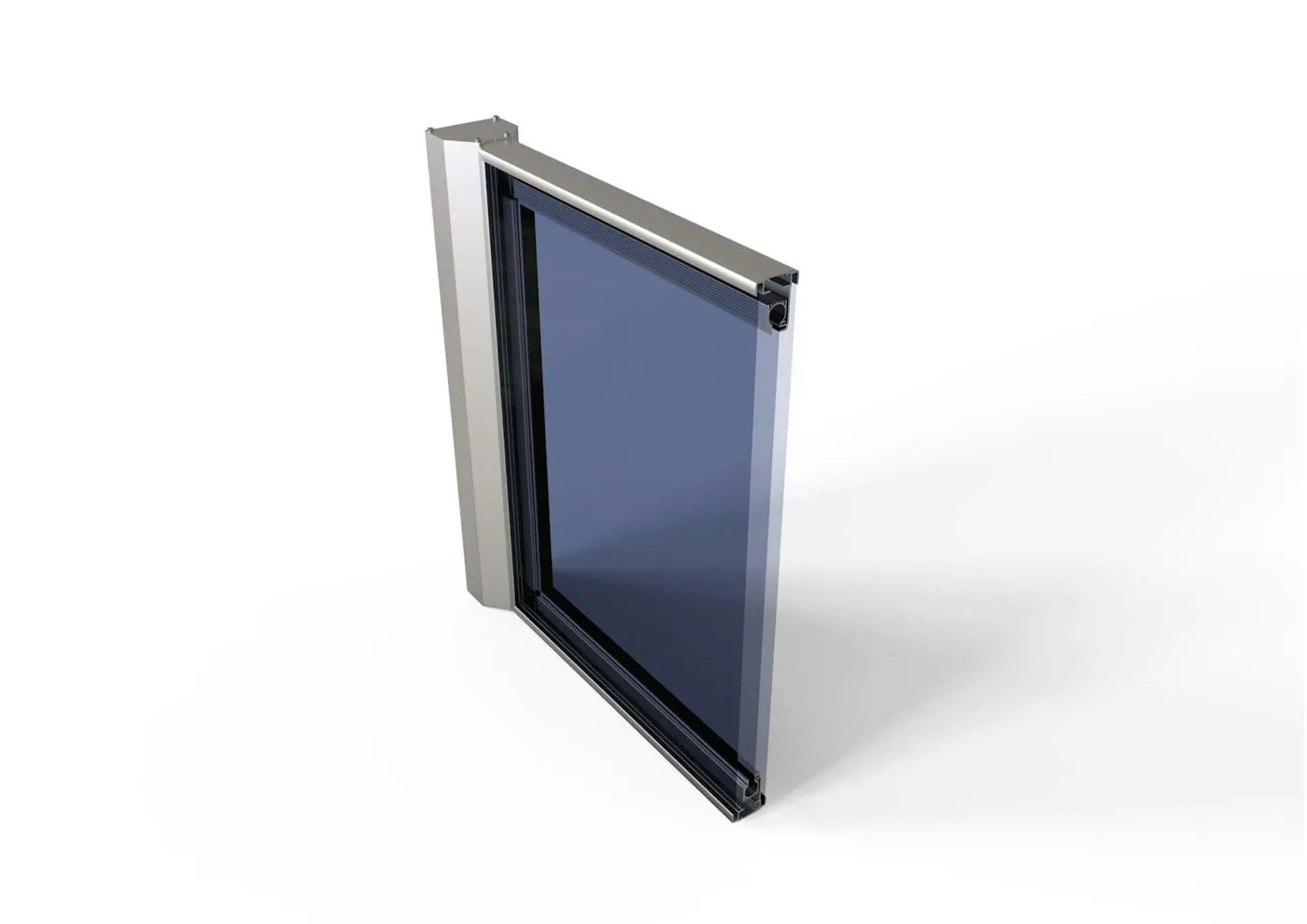

Edgelight 45 is a compact, interchangeable aluminium profile system for building 45 mm thick single- or double-sided edge-lit illuminated signage frames for outdoor use (wall mounting, suspended, projecting).
- Slim design, only 45 mm deep.
- Single- and double-sided, easy to change.
- Ideal for wall, suspended or projecting mounting.
Edgelight 45 is a sleek aluminium profile system only 45 mm deep, specially developed for creating thin single- or double-sided illuminated signage frames. The illumination is provided by an Led light panel (edge-lit). The matching wall console profile houses the Led drivers, allowing the system to be mounted horizontally or vertically, as a single- or double-sided projecting sign — ideal for wayfinding. The sign or nameplate can be changed easily by sliding it out after loosening the cover strip.
Applications:
- Led illuminated wayfinding and signage in retail and hospitality
- - Led illuminated name, logo and advertising frames
Available in standard lengths of 6100 mm, in mill finish, silver anodised or powder coated. On request, profiles also be cut to size.
Technical information
| Feature | 45 mm deep, interchangeable |
|---|---|
| Medium | 4 mm plastic sheet or milled ACM panel |
| Panel thickness | 4 mm |
| Application | Indoor and outdoor use |
| Lighting | Illuminated |
| Light source | Led light panel (edge-lit) |
| Configuration | Single- and double-sided |
| Profiles | 6100 mm, EN AW 6060 T6, mill finish, anodized, coated on request. |
| Components | Console mounting profile, corner connectors, miter plates. |
Availability and lead times for supply through 3:rock are confirmed on quotation.
Ask about EdgeLight 45 →FrameLED

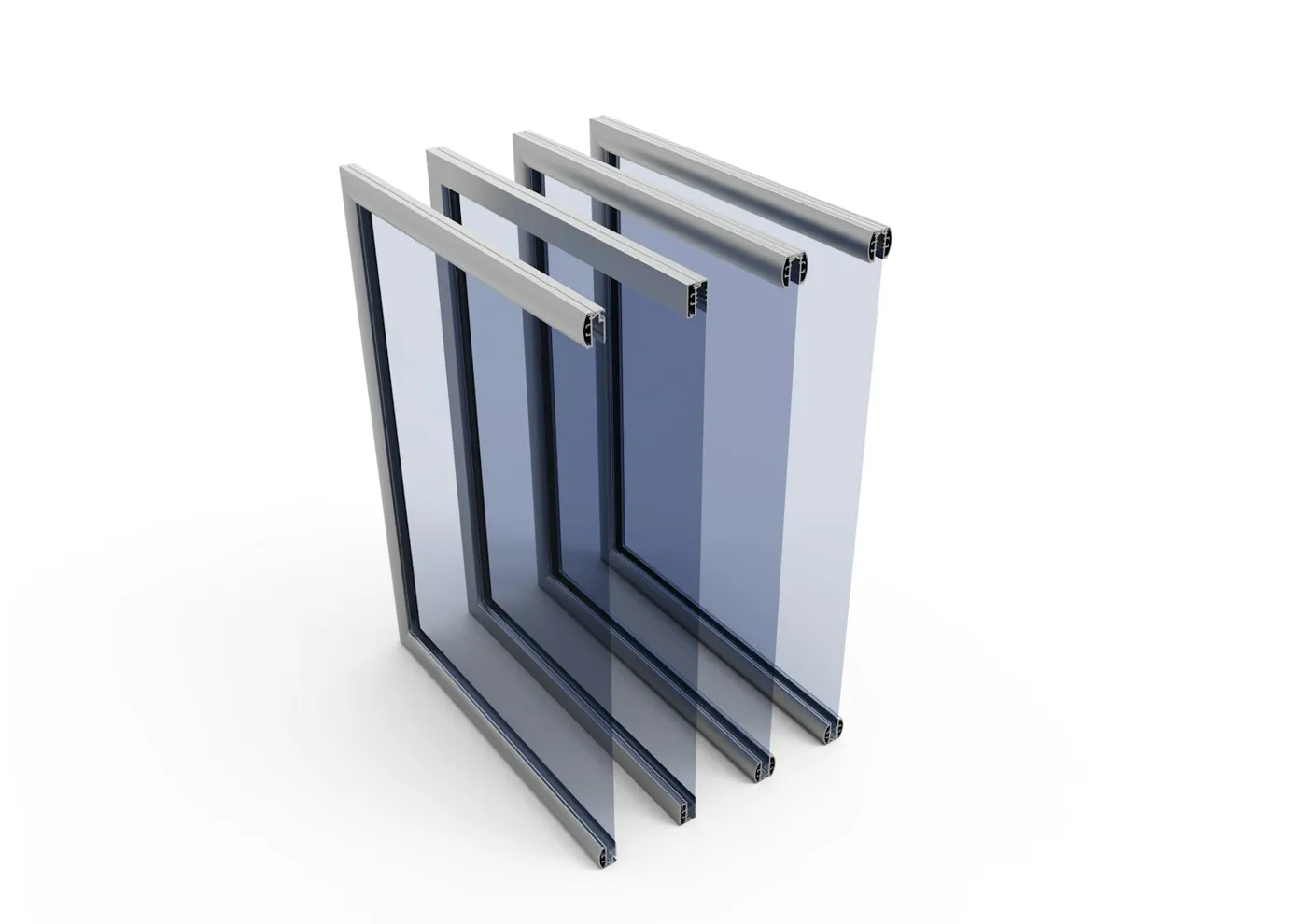

The FrameLED system creates ultra-flat aluminium single- or double-sided poster frames illuminated by edge-lit led panels. Perfect for showcasing posters at fairs, events, retail spaces, cinemas, theatres, and more.

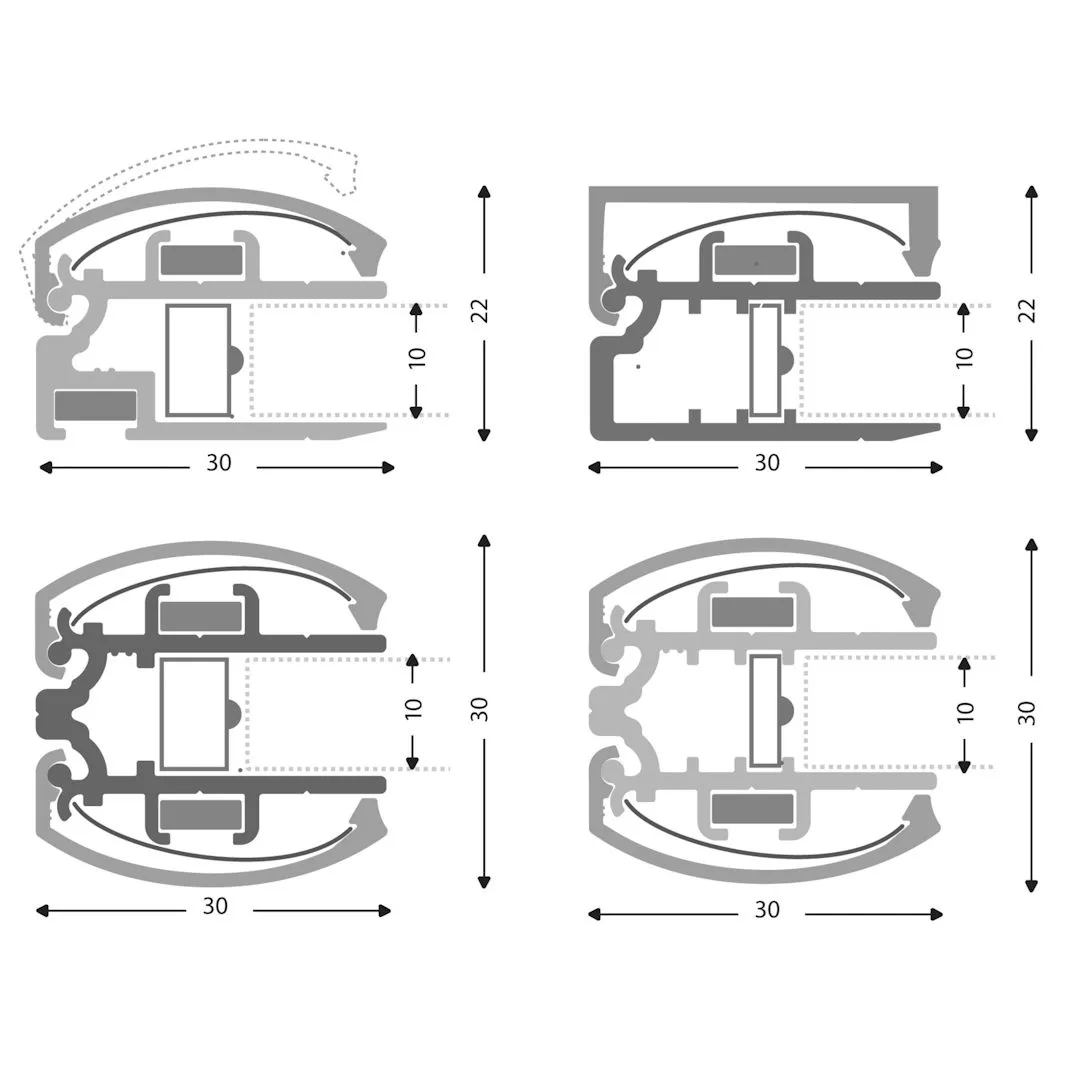

- Ultra-flat build-up (single-sided 22 mm, double-sided 30 mm)
- Even light distribution via edge-lit technology
- Posters can be changed quickly and easily.
The FrameLED system is designed to brightly illuminate posters, for example cinema posters. Changing posters is quick and tool-free.

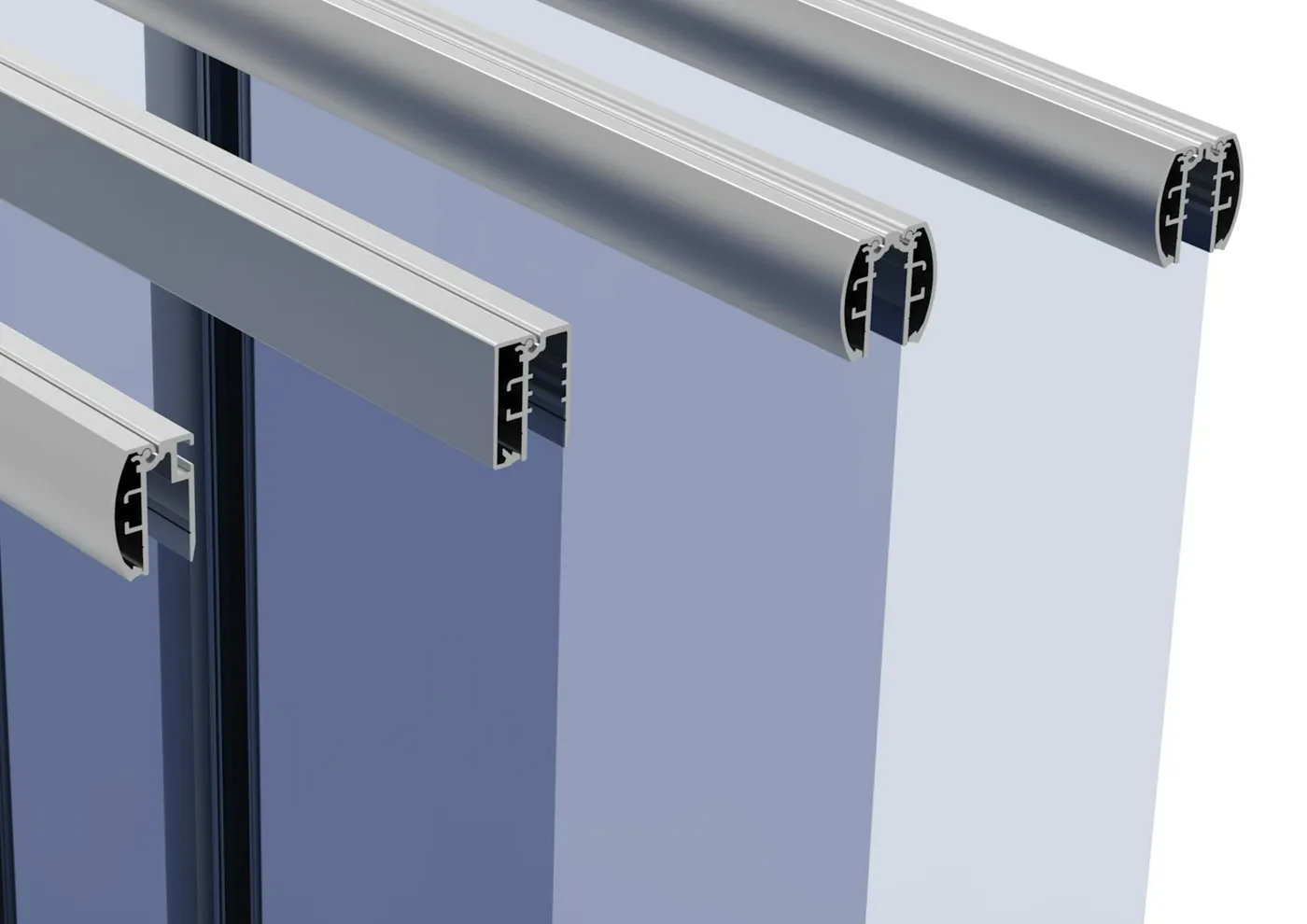

The 20 mm frame consists of two hinged aluminium profiles connected with stainless steel springs. The base profile holds the power leds that illuminate the special edge-lit acrylic panel, while the clamping profile hinges on the base profile to securely hold the protective sheet and poster.
FrameLED is suitable for single- and double-sided illuminated poster frames (LED snap frames).
Applications:
- High-end displays in cinemas, stores, and showrooms
- - Presentations at trade fairs, in hotels, restaurants, museums, and more
3:rock supplies the FrameLED system in standard lengths of 6100 mm in a silver anodised finish. The profiles are not available cut to size.
Technical information
| Feature | 20 & 30 mm deep, quick change. |
|---|---|
| Medium | Printed posters |
| Application | Indoor use |
| Lighting | Illuminated |
| Light source | Led – light panel, max 8 mm |
| Configuration | Single- and double-sided |
| Profiles | 6100 mm, EN AW 6060 T6, mill finish & anodized |
| Components | Corner connectors and spring clips |
Availability and lead times for supply through 3:rock are confirmed on quotation.
Ask about FrameLED →NeoxLed 15

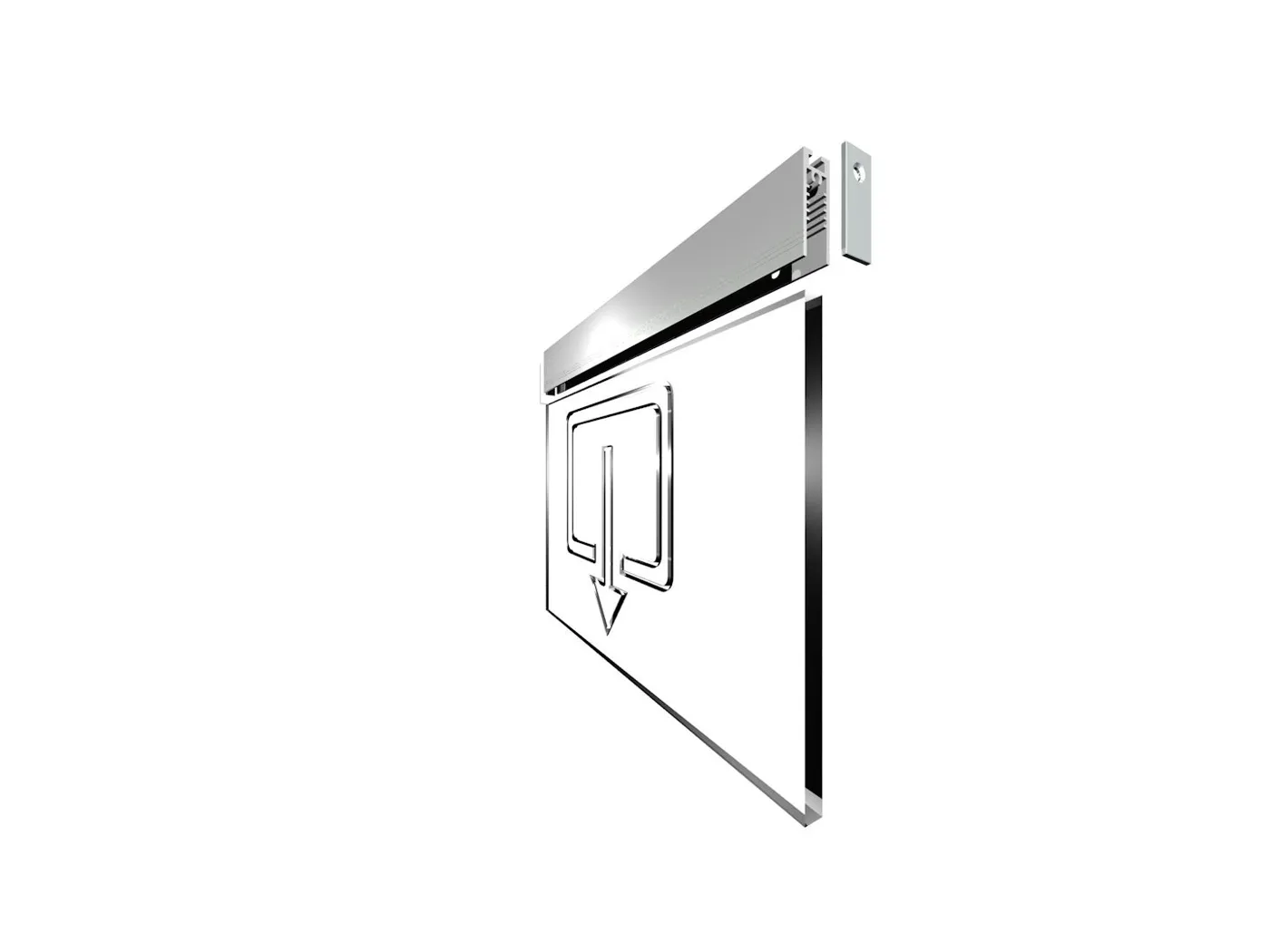

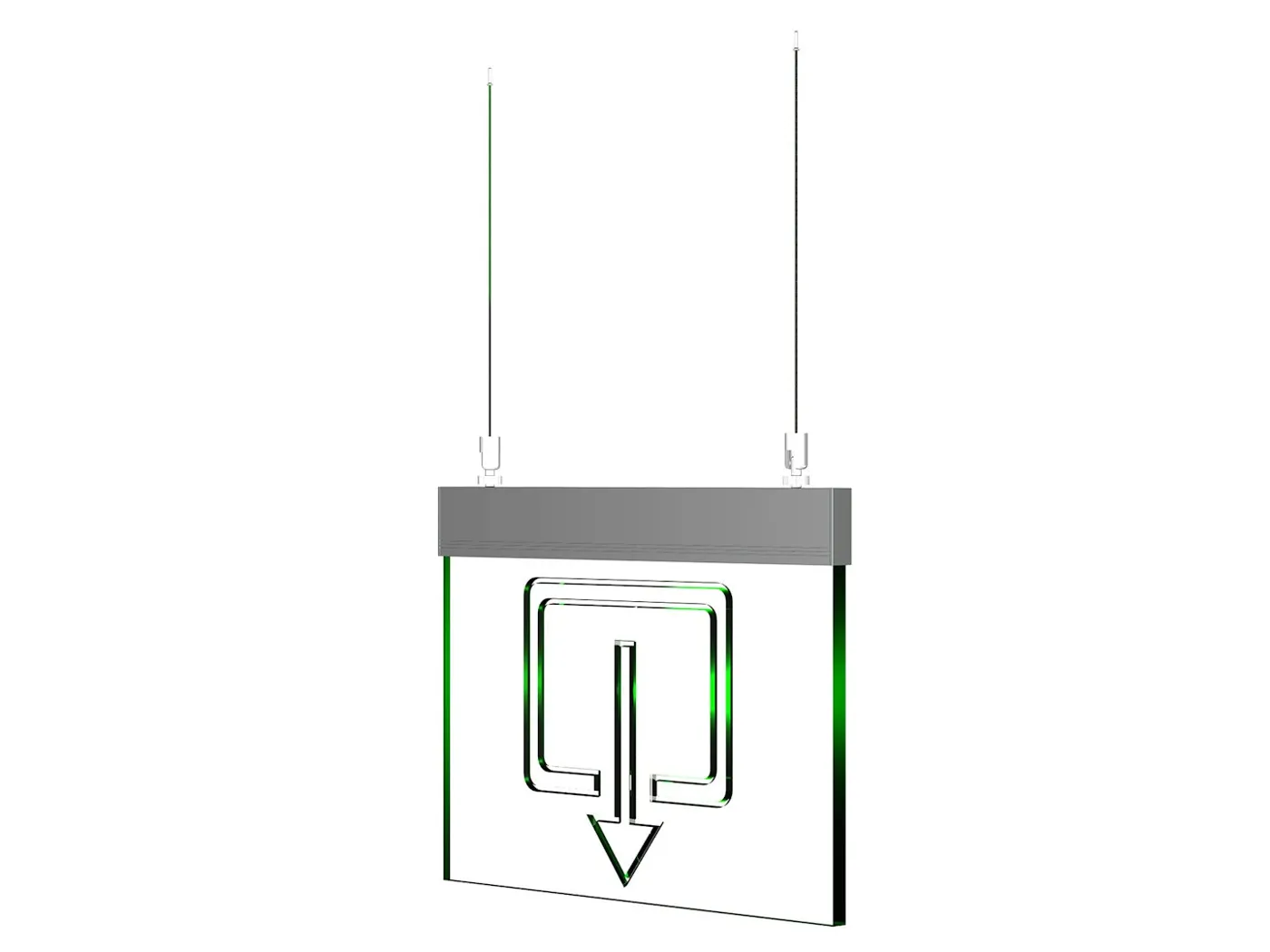

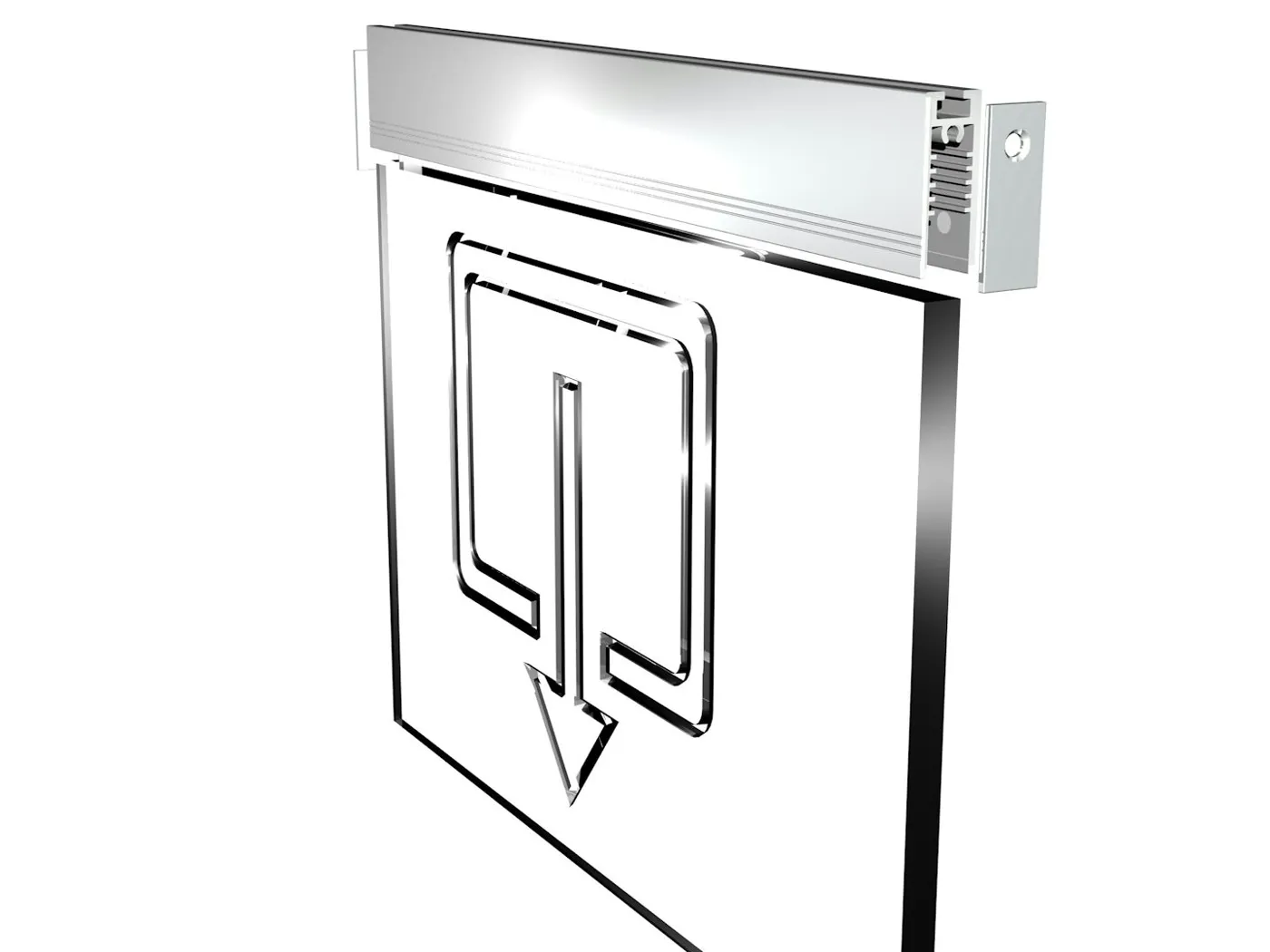

NeoxLed 15 is an anodised aluminium profile for side-illuminating (edge-lit) 4 or 10 mm acrylic panels. Texts or logos milled into the acrylic are fully illuminated. NeoxLed is suitable for ceiling suspension.
- Only 15 mm deep – minimal design, maximum impact.
- Versatile – suitable for indoor & outdoor, wall or suspension.
- Side-illumination possible from one or both sides.
The NeoxLed 15 is designed for creating illuminated panels with a thickness of just 15 mm. The aluminium profile is compatible with 4 or 10 mm thick acrylic panels that can be milled and/or covered with film.
NeoxLed 15 is highly suitable for various applications, such as:
- Wayfinding in public spaces, hospitality or retail.
- - Information panels in offices or hospitals.
- - Illuminated displays at trade shows or events.
3:rock supplies the NeoxLed 15 profile from stock in a standard length of 6100 mm and can cut it to size on request. Matching accessories, such as end caps and suspension sets, are also available for a complete installation.
Technical information
| Feature | 15 mm deep |
|---|---|
| Medium | 4 and 10 mm acrylaat |
| Panel thickness | 4 and 10 mm |
| Application | Indoor and outdoor use |
| Lighting | Illuminated |
| Light source | Led strips |
| Configuration | Single-sided |
| Profiles | 6100 mm, EN AW 6060 T6, mill finish, anodized, coated on request. |
| Components | End caps, suspension sets, nylon slide-in hooks. |
Availability and lead times for supply through 3:rock are confirmed on quotation.
Ask about NeoxLed 15 →Sign Systems
Ask 3:rock about the range
Send us the system name, dimensions and finish you need. We’ll confirm availability and lead times with your quote.
