Sign Posting Systems
3:rock supplies the full sign posting systems range — 4 systems.
Ask about this range →Our aluminium signposting systems offer a high-quality solution for visual communication and wayfinding in public and commercial spaces. From modular totem systems to wall-mounted and suspended signs, they are ideal for use in public buildings, offices, hospitals, airports and car parks - both indoors and outdoors.
All of our signposting systems are made from high-grade aluminium and are easy to install, combine and customise. They are available from stock in standard lengths or made to measure in the desired dimensions, shapes and finishes. Think of wall panels, suspension systems, snap frames and totems that you can fully configure.
Aluminium signposting offers a professional appearance and long-lasting quality. Thanks to the intelligent modular design and robust materials, our systems are highly versatile and easy to install. The advantages:
signposting systems are widely used in public and commercial environments such as hospitals, airports, office buildings, car parks and educational institutions. Thanks to the modular design, the profiles can be combined and easily fitted with texts, pictograms or interchangeable inserts. Ideal for clear and flexible information provision at any location.
3:rock has been a specialist in aluminium solutions for the sign industry for over 75 years. We develop intelligent systems that are easy to apply in signposting, advertising and project design. Choosing means choosing quality, flexibility and sleek design.
Products

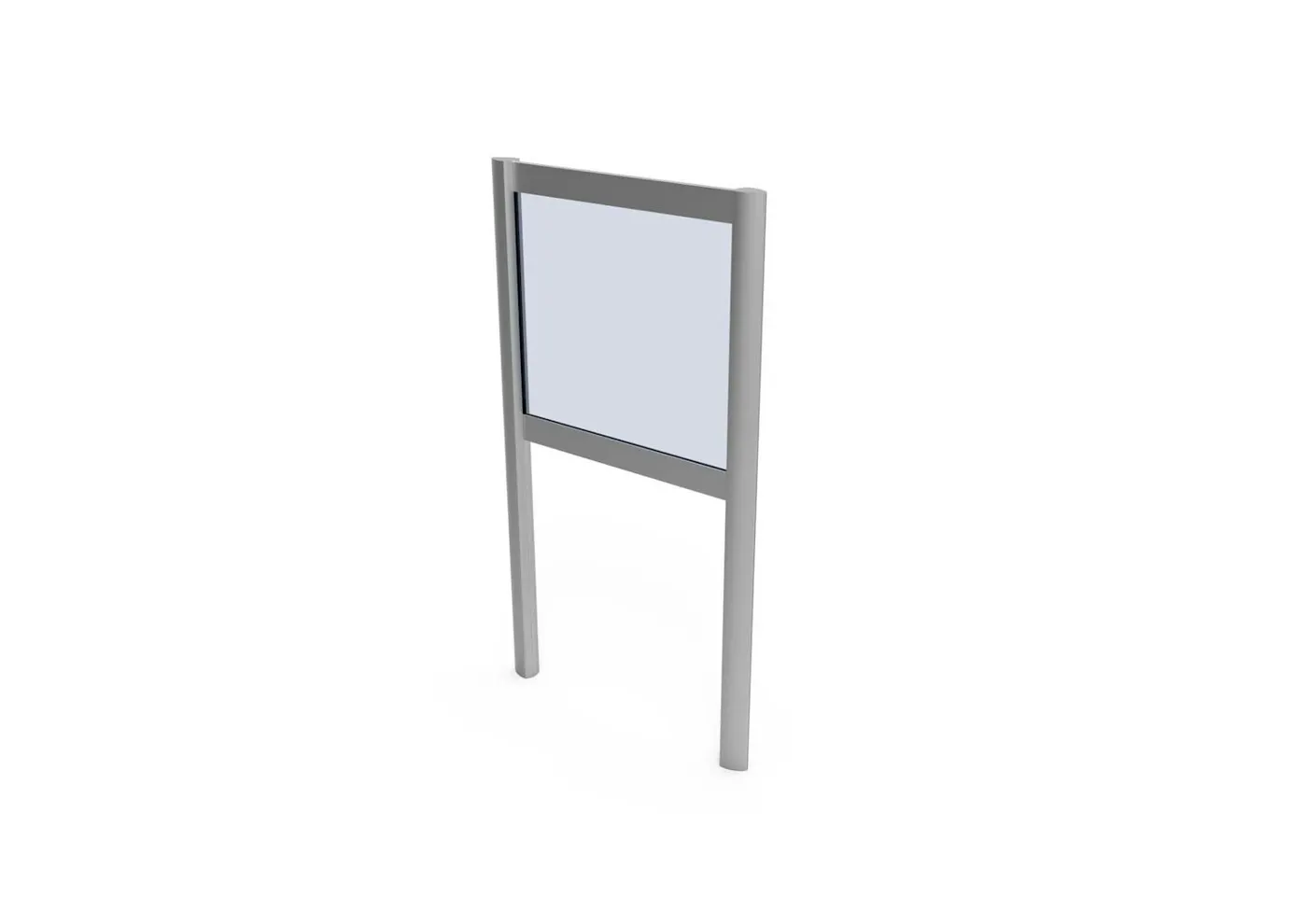

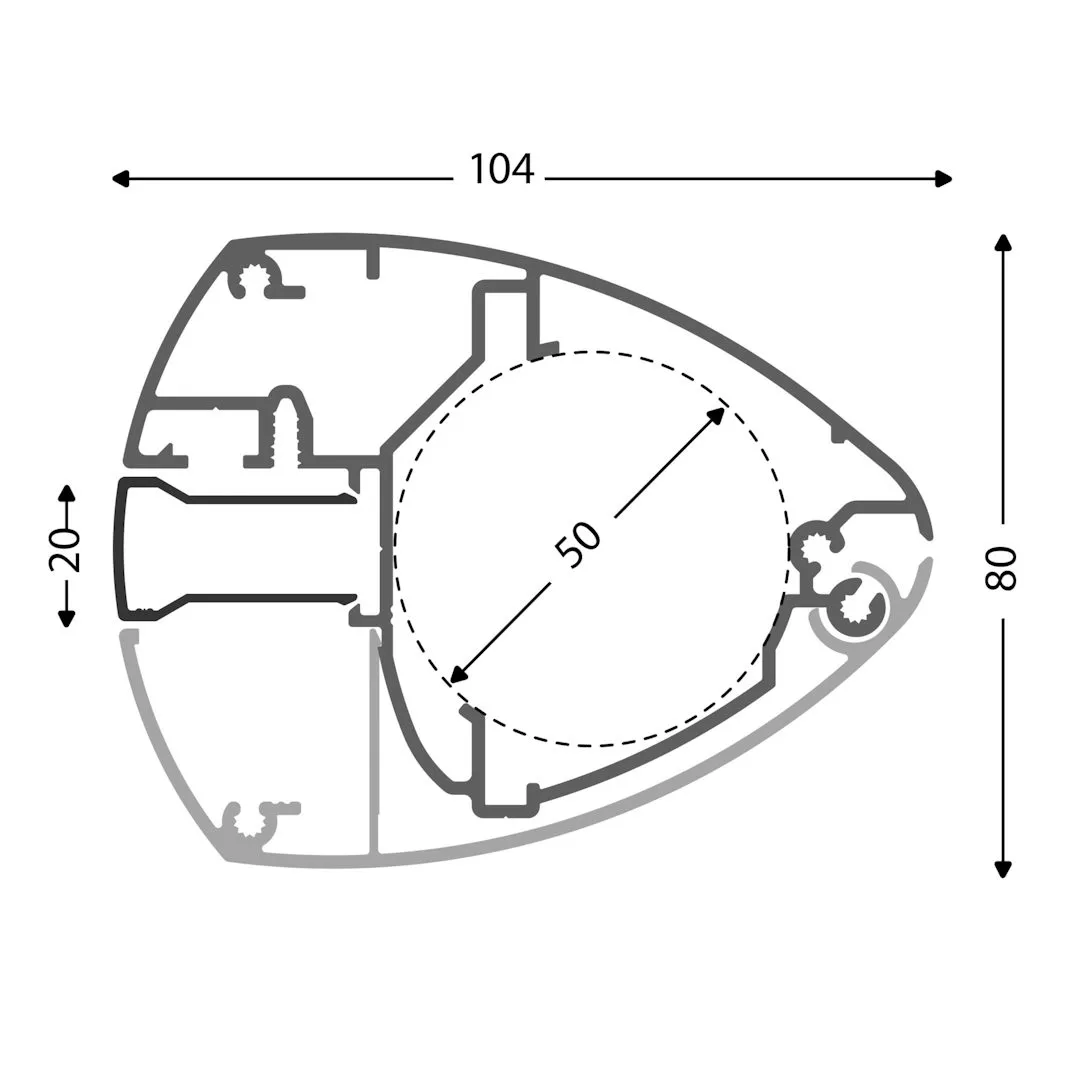

Ellips
Ellips is an aluminium wayfinding signage system designed for creating portal signs in combination with interchangeable panels of 100, 150 and 200 mm. Suitable for use at industrial estates, office complexes, healthcare institutions, golf courses, sports grounds and amusement parks.
- Aluminium sign system with 100, 150 and 200 mm panels.
- Suitable for freestanding installation on concrete foundations or concrete bases.
- Interchangeable panels thanks to hinged cover profiles.
- Larger custom panels, 20 mm thick, available on request.
The system consists of a basic upright post mounted onto a sufficiently sturdy concrete base using stainless steel screws. The 100 mm, 150 mm or 200 mm panels (or custom text panels) are then fixed in place with screws or sliding nuts. These fixings are concealed with a hinged cover profile at the level of the installed panels. Any open space between panels is closed off with a snap-in strip, and the uprights are finished at the top with screw-on aluminium end caps.
The Ellips wayfinding system is available from stock in standard lengths of 6100 mm in mill finish, silver anodised or white powder-coated versions (other colours available on request). Panels can also be supplied cut to size as an easy-to-assemble kit.
- Freestanding portal signs.
- - Wall-mounted wayfinding signs.
Custom made
3:rock can supply the Ellips system customised to your specifications. This saves you time and ensures a professional end result every time.
Technical information
| Feature | 80 & 90 mm interchangeable |
|---|---|
| Medium | 100, 150 and 200 mm panels and ACM panels. |
| Panel thickness | 20 mm |
| Application | Indoor and outdoor use |
| Lighting | Illuminated and non-illuminated |
| Light source | Led strips |
| Profiles | 6100 mm, EN AW 6060 T6, mill finish, anodised or white powder-coated |
| Components | End caps |
Availability and lead times for supply through 3:rock are confirmed on quotation.

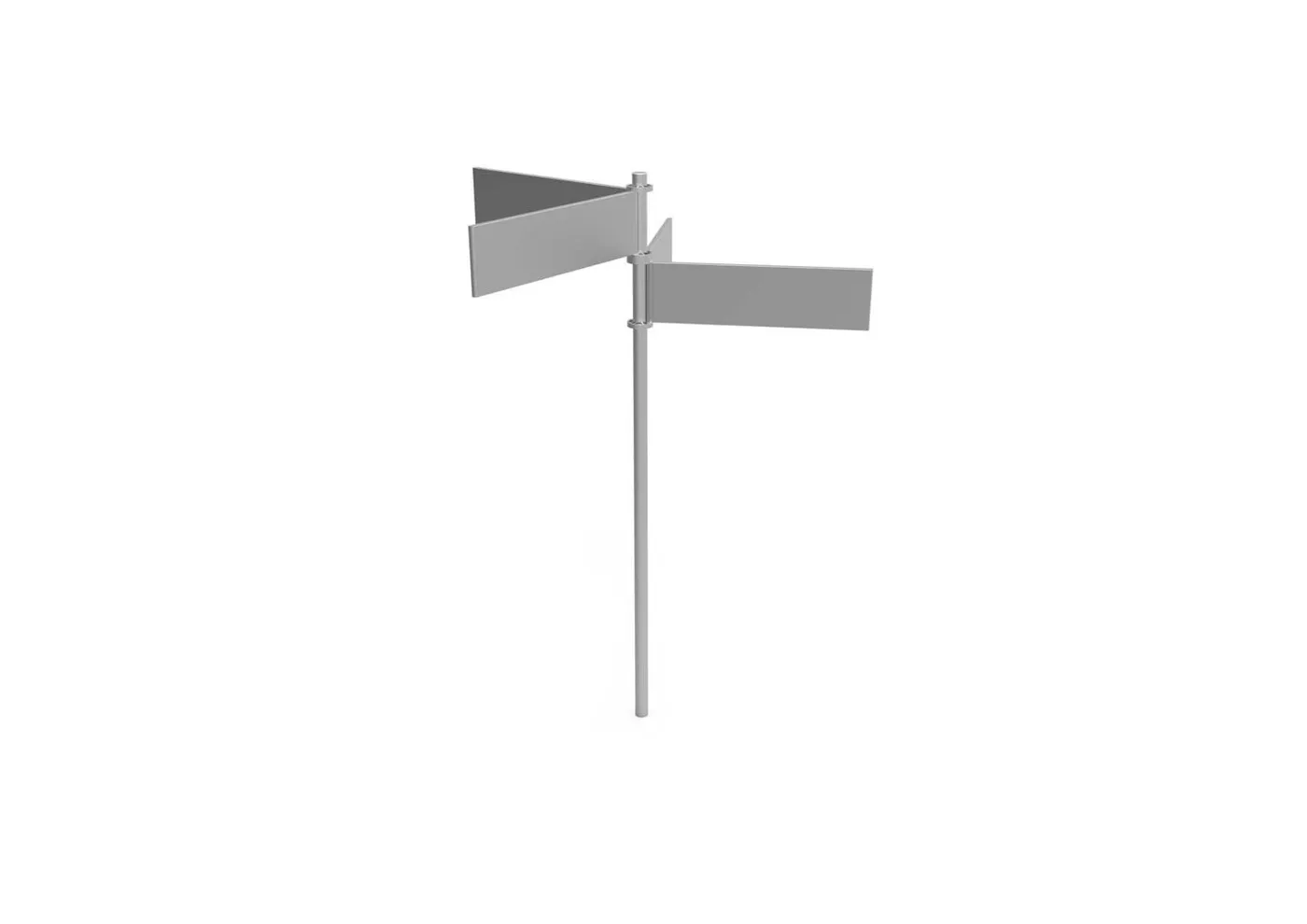

Ask about Ellips →Pervia

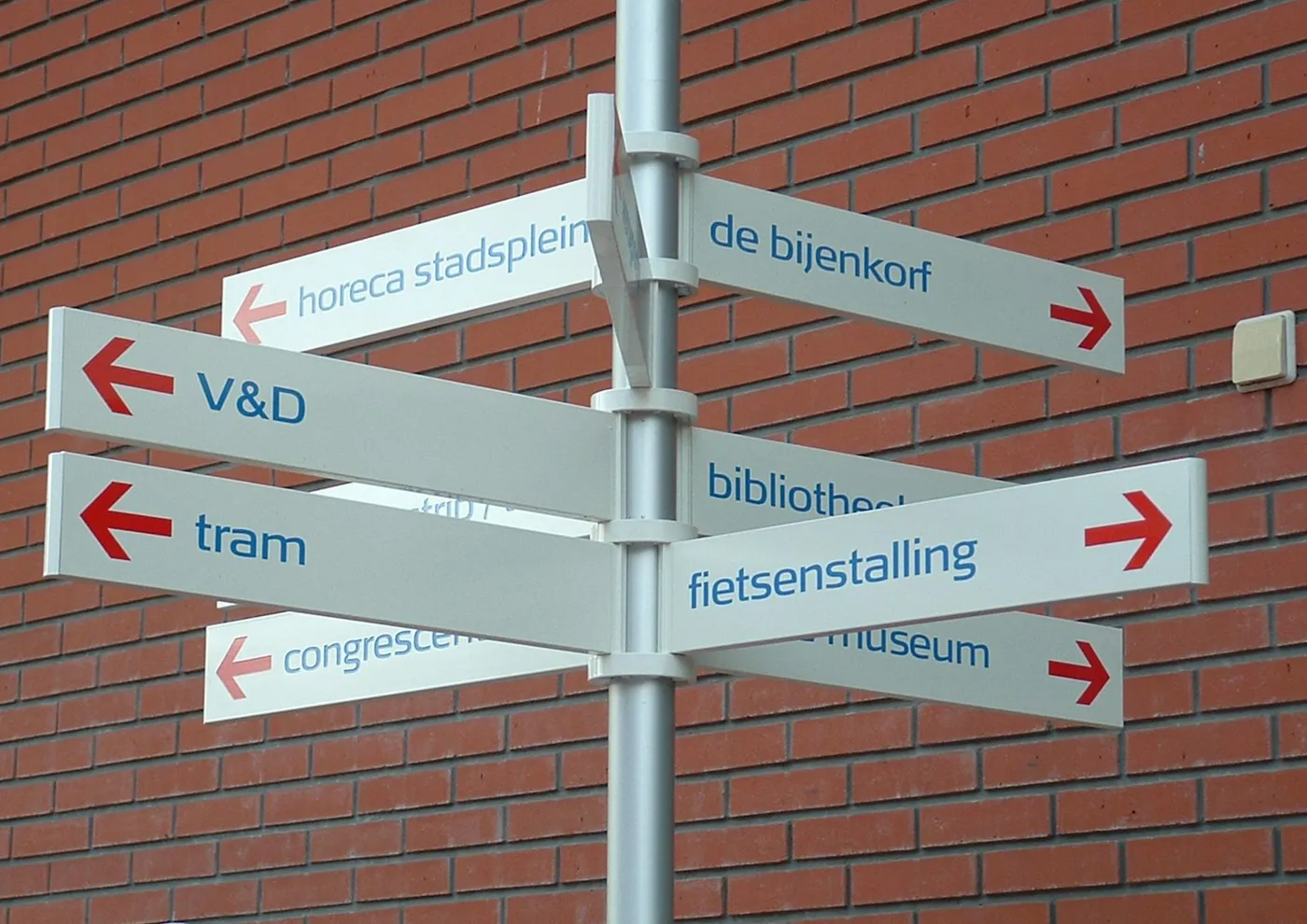

The aluminium Pervia system is a sleekly designed wayfinding system for creating multi-directional signposts on a pole. Its minimalist design ensures a clean and elegant appearance.
- Multi-directional signposts with minimalist design.
- Suitable for pole diameter 48 mm or 60 mm with 4, 6 or 8 signs.
- Panel heights 100 mm, 150 mm and 200 mm.
- Arrow-shaped signs available on request.
The Pervia multi-directional signage system is specially designed for mounting on steel tubular poles or stainless steel tubes with an outer diameter of 48 mm or 60 mm. These poles must be anchored on a sturdy concrete foundation or base.
The 20 mm thick aluminium signs, available in heights of 100, 150 and 200 mm, are fitted with mounting parts that are clamped between the Pervia mounting rings. Per ‘level’, depending on the pole diameter, 4, 6 or even 8 signs can be mounted. The sign panels are finished with rounded end caps fastened with stainless steel screws.
The Pervia system is available in silver anodised or white powder-coated finishes; other (project) colours are available on request. Naturally, the Pervia system can be cut to size and supplied as a easy-to-assemble kit.
Pervia is suitable for a wide range of applications:
- Multi-directional signposts in shopping centres, sports parks, golf courses, etc.
- - Freestanding wayfinding signs and information poles.
- - Arrow-shaped signs possible!
Technical information
| Feature | Outer pole: ⌀ 48 mm or 60 mm. Panel height: 100, 150 or 200 mm |
|---|---|
| Medium | Wayfinding panels, arrow signs |
| Panel thickness | 20 mm |
| Application | Indoor and outdoor use |
| Lighting | Non-illuminated |
| Configuration | Single- and double-sided |
| Profiles | 6100 mm, EN AW 6060 T6, mill finish, anodised silver or gold and white painted |
| Components | Mounting rings, mounting parts, end caps, plastic cover cap |
Availability and lead times for supply through 3:rock are confirmed on quotation.
Ask about Pervia →Quattro

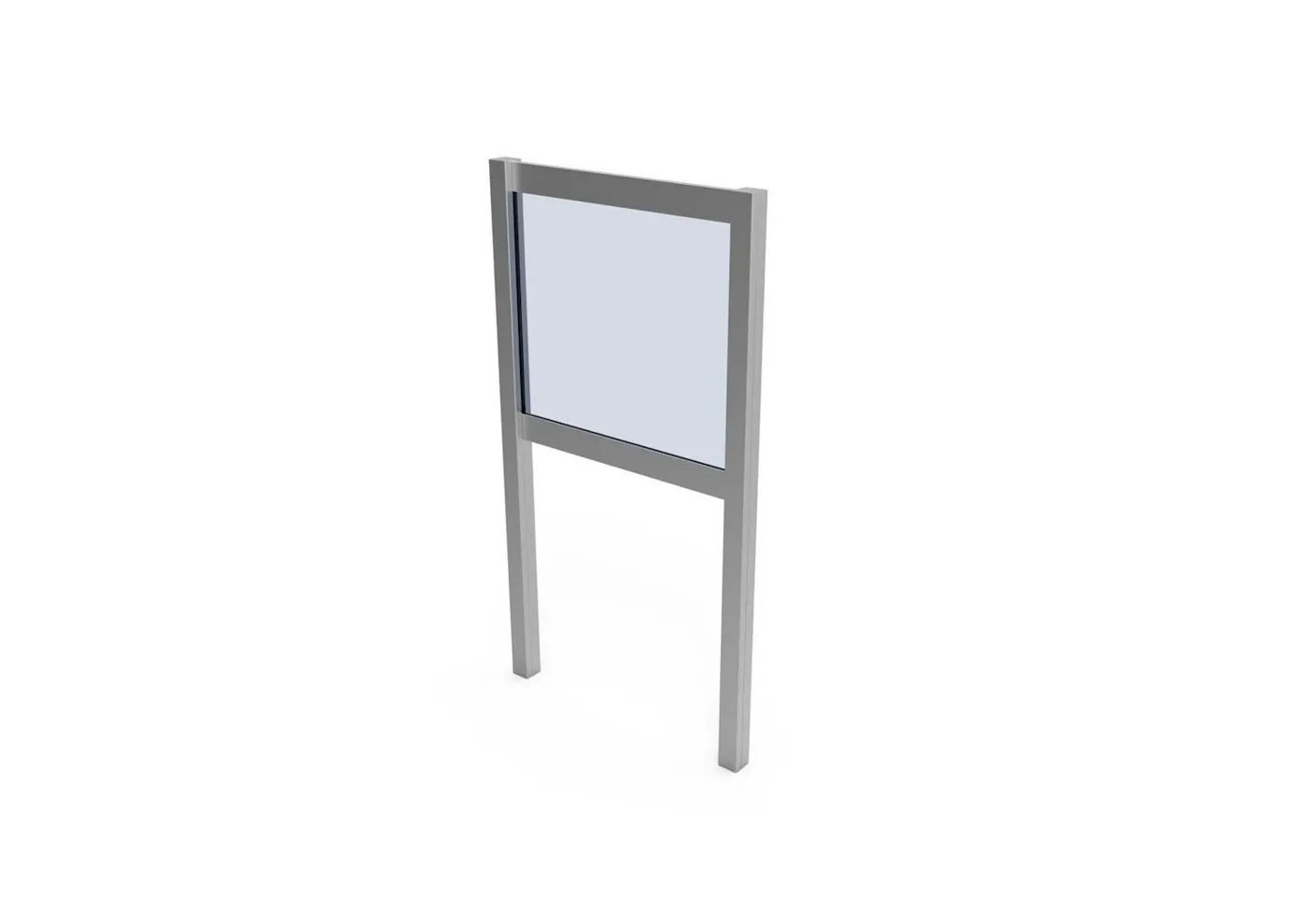

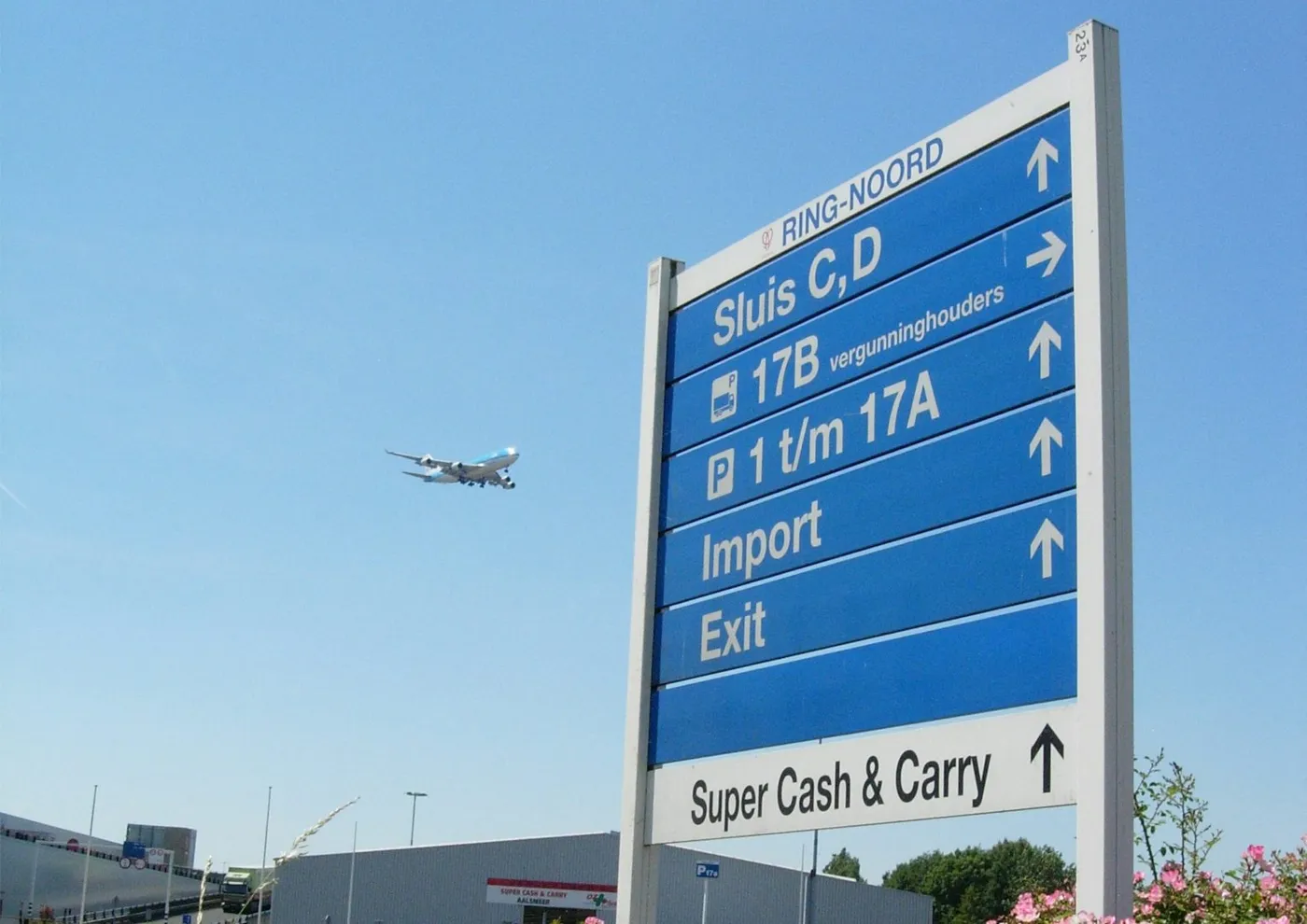

Quattro is an aluminium wayfinding signage system designed for creating portal signs in combination with interchangeable panels of 100, 150 and 200 mm. Suitable for use at industrial estates, office complexes, healthcare institutions, golf courses, sports grounds and amusement parks.
- Aluminium sign system with 100, 150 and 200 mm panels.
- Suitable for freestanding installation on concrete foundations or concrete bases.
- Interchangeable panels thanks to hinged cover profiles.
- Larger custom panels, 20 mm thick, available on request.
The system consists of a basic upright post mounted onto a sufficiently sturdy concrete base using stainless steel screws. The 100 mm, 150 mm or 200 mm panels (or custom text panels) are then fixed in place with screws or sliding nuts. These fixings are concealed with a hinged cover profile at the level of the installed panels. Any open space between panels is closed off with a snap-in strip, and the uprights are finished at the top with screw-on aluminium end caps.
The Quattro wayfinding system is available from stock in standard lengths of 6100 mm in mill finish, silver anodised or white powder-coated versions (other colours available on request). Panels can also be supplied cut to size as an easy-to-assemble kit.
- Freestanding portal signs.
- - Wall-mounted wayfinding signs.
Custom made
3:rock can supply the Quattro system customised to your specifications. This saves you time and ensures a professional end result every time.

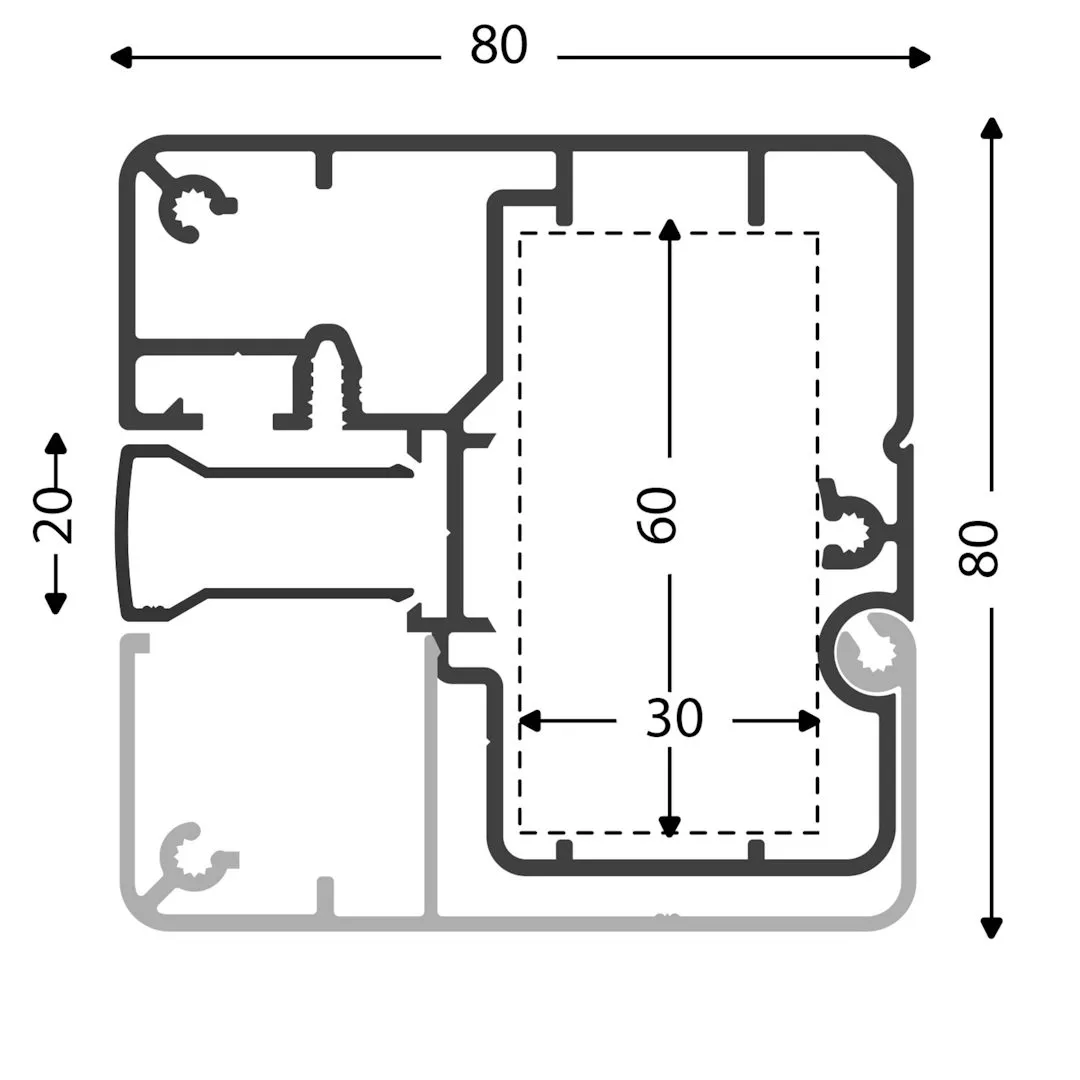

Technical information
| Feature | 80 & 90 mm interchangeable |
|---|---|
| Medium | 100, 150 and 200 mm panels and ACM panels. |
| Panel thickness | 20 mm |
| Application | Indoor and outdoor use |
| Lighting | Illuminated and non-illuminated |
| Light source | Led strips |
| Profiles | 6100 mm, EN AW 6060 T6, mill finish, anodised or white powder-coated |
| Components | End caps |
Availability and lead times for supply through 3:rock are confirmed on quotation.

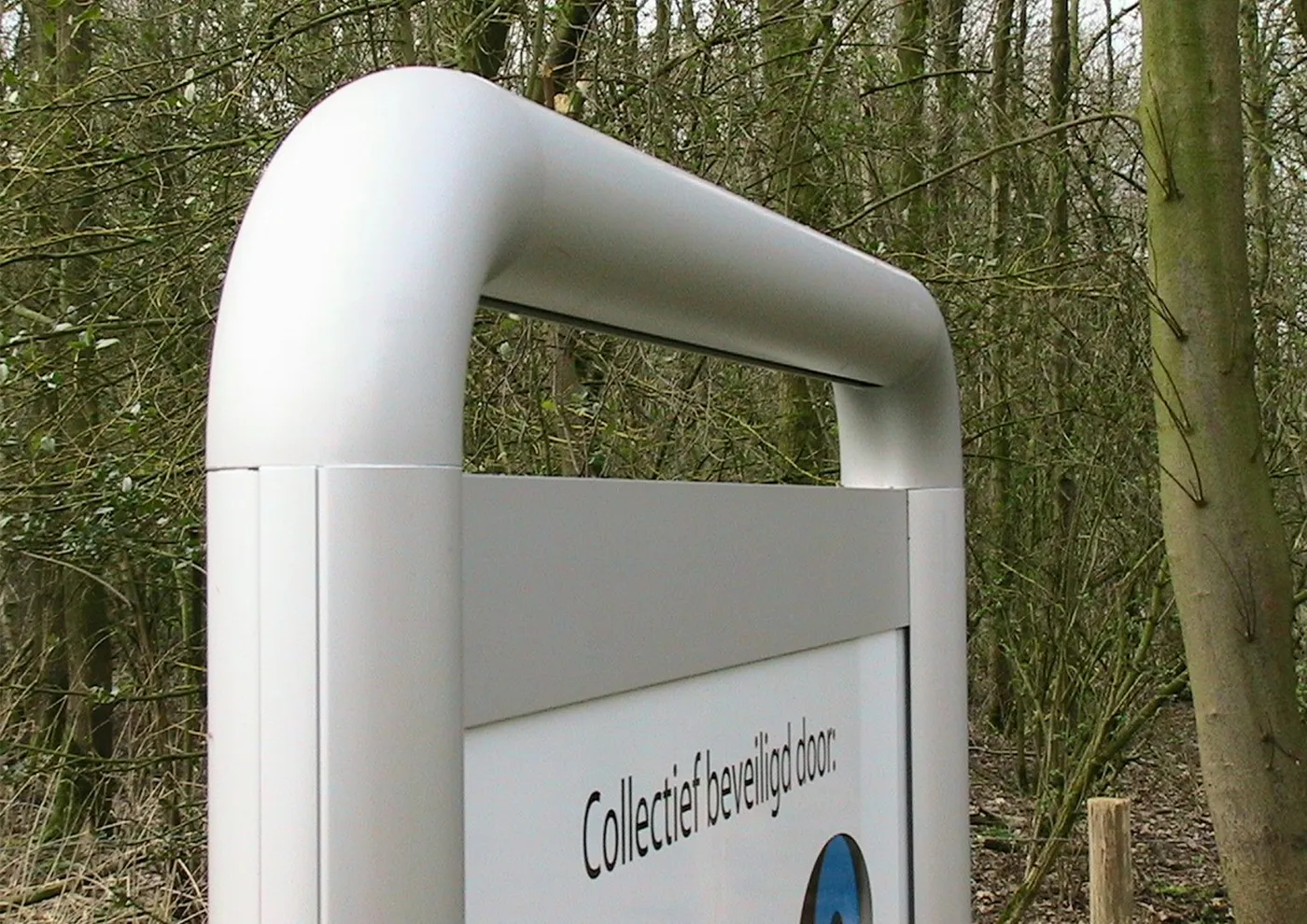

Ask about Quattro →Ringo
Ringo is an aluminium wayfinding signage system designed for creating portal signs in combination with interchangeable panels of 100, 150 and 200 mm. Suitable for use at industrial estates, office complexes, healthcare institutions, golf courses, sports grounds and amusement parks.
- Aluminium sign system with 100, 150 and 200 mm panels.
- Suitable for freestanding installation on concrete foundations or concrete bases.
- Interchangeable panels thanks to hinged cover profiles.
- Larger custom panels, 20 mm thick, available on request.
The system consists of a basic upright post mounted onto a sufficiently sturdy concrete base using stainless steel screws. The 100 mm, 150 mm or 200 mm panels (or custom text panels) are then fixed in place with screws or sliding nuts. These fixings are concealed with a hinged cover profile at the level of the installed panels. Any open space between panels is closed off with a snap-in strip, and the uprights are finished at the top with screw-on aluminium end caps.
The Ringo wayfinding system is available from stock in standard lengths of 6100 mm in mill finish, silver anodised or white powder-coated versions (other colours available on request). Panels can also be supplied cut to size as an easy-to-assemble kit.
- Freestanding portal signs.
- - Wall-mounted wayfinding signs.
Custom made
3:rock can supply the Ringo system customised to your specifications. This saves you time and ensures a professional end result every time.

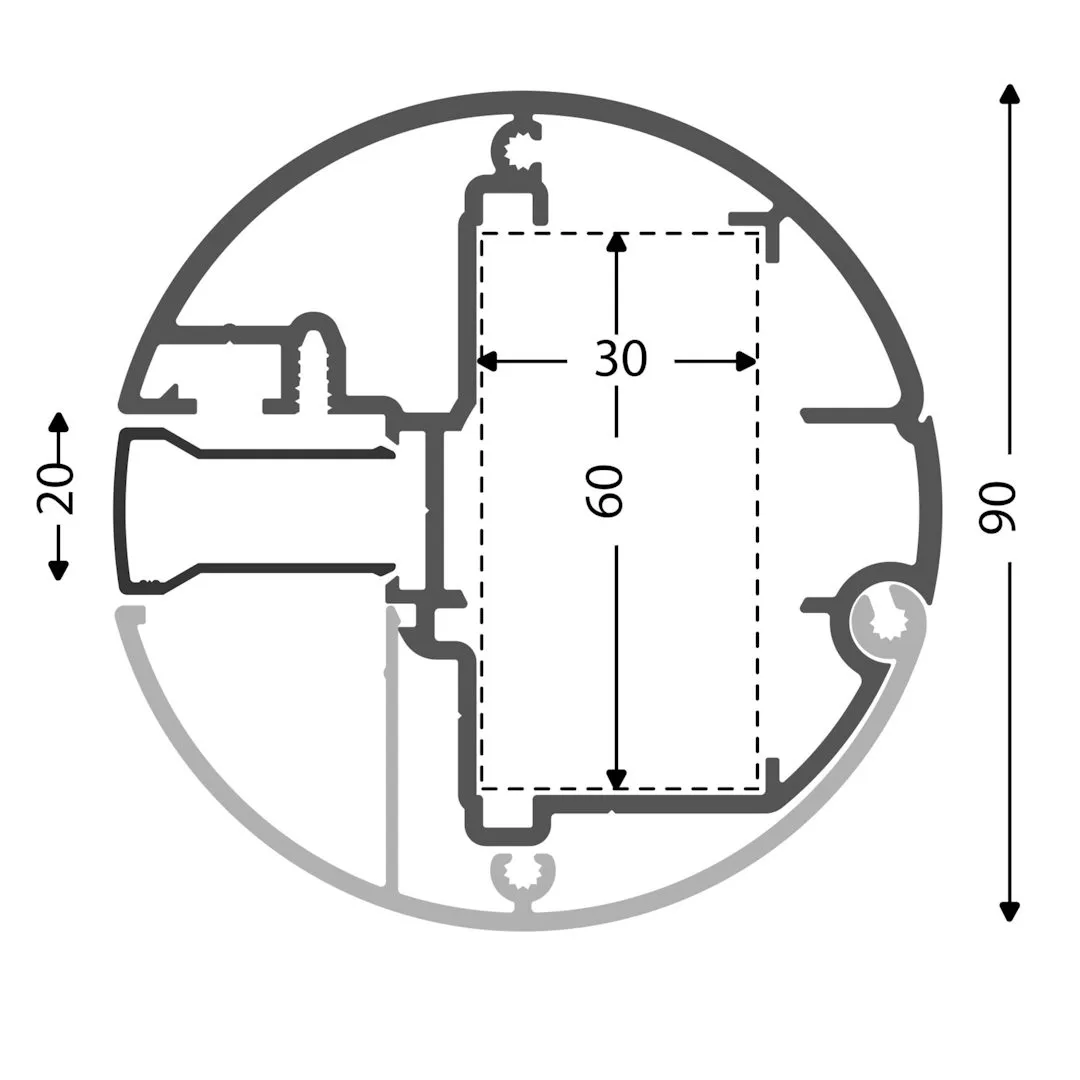

Technical information
| Feature | 80 & 90 mm interchangeable |
|---|---|
| Medium | 100, 150 and 200 mm panels and ACM panels. |
| Panel thickness | 20 mm |
| Application | Indoor and outdoor use |
| Lighting | Illuminated and non-illuminated |
| Light source | Led strips |
| Profiles | 6100 mm, EN AW 6060 T6, mill finish, anodised or white powder-coated |
| Components | End caps and round corners |
Availability and lead times for supply through 3:rock are confirmed on quotation.
Ask about Ringo →Sign Systems
Ask 3:rock about the range
Send us the system name, dimensions and finish you need. We’ll confirm availability and lead times with your quote.
