Tube Connecting Systems — Round
3:rock supplies the full tube connecting systems — round range — 1 system.
Ask about this range →Products
Connecta
With the Connecta tube-connecting system, you can quickly and efficiently build simple constructions using 45×40 mm round aluminium tubes. Whether it’s a banner frame on a wall or freestanding, a safety barrier around a machine or more, Connecta is a simple, smart solution for lightweight, modular structures.
- Easy assembly without welding – screw, rivet or glue.
- Versatile – suitable for indoor and outdoor use.
- Aluminium tube Ø 45×40 mm with 40 different connectors.

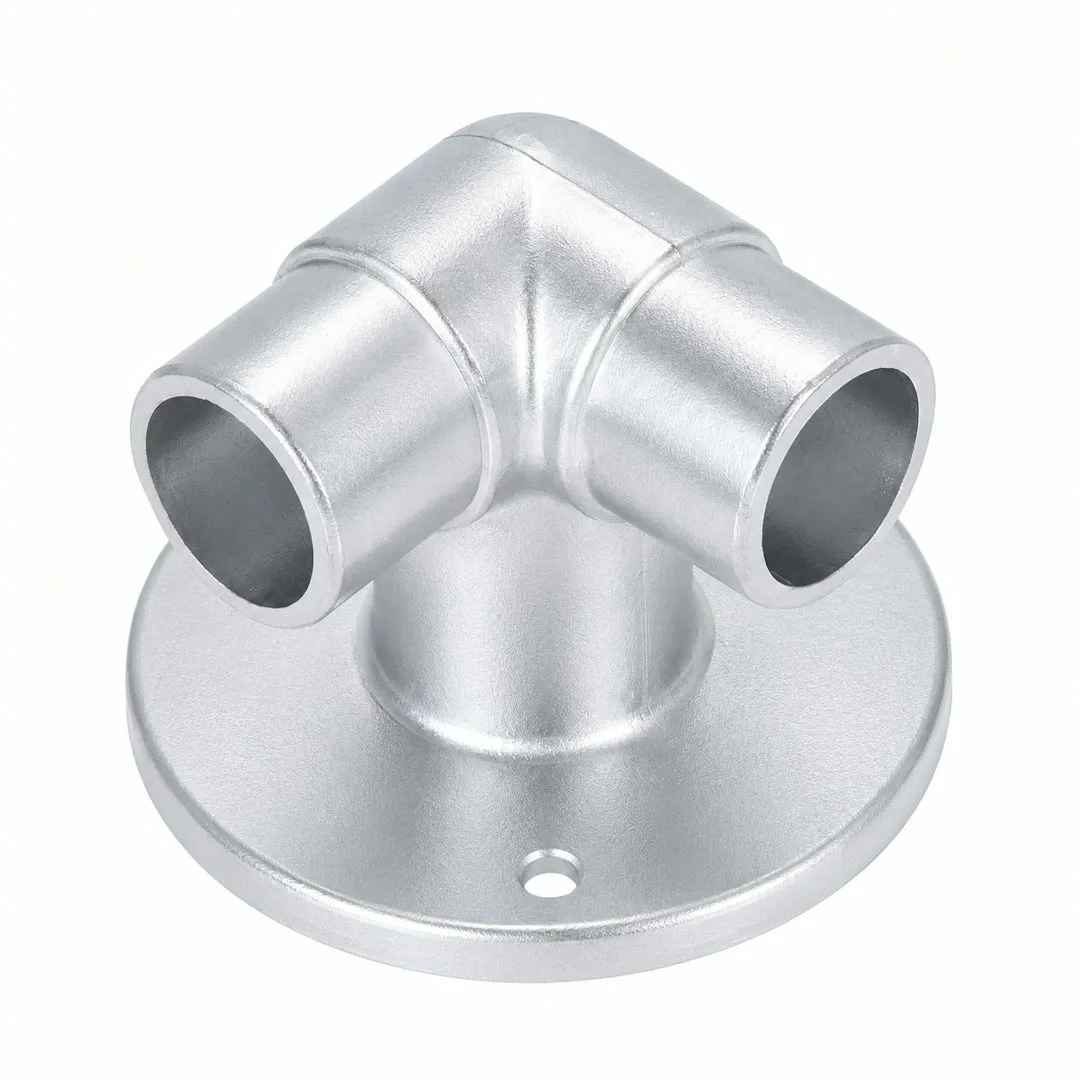

The Connecta system is a straightforward tube-connecting system for round 45×40 mm aluminium tubes. The connectors are made from cast aluminium and can be screwed, riveted or glued into the tubes.

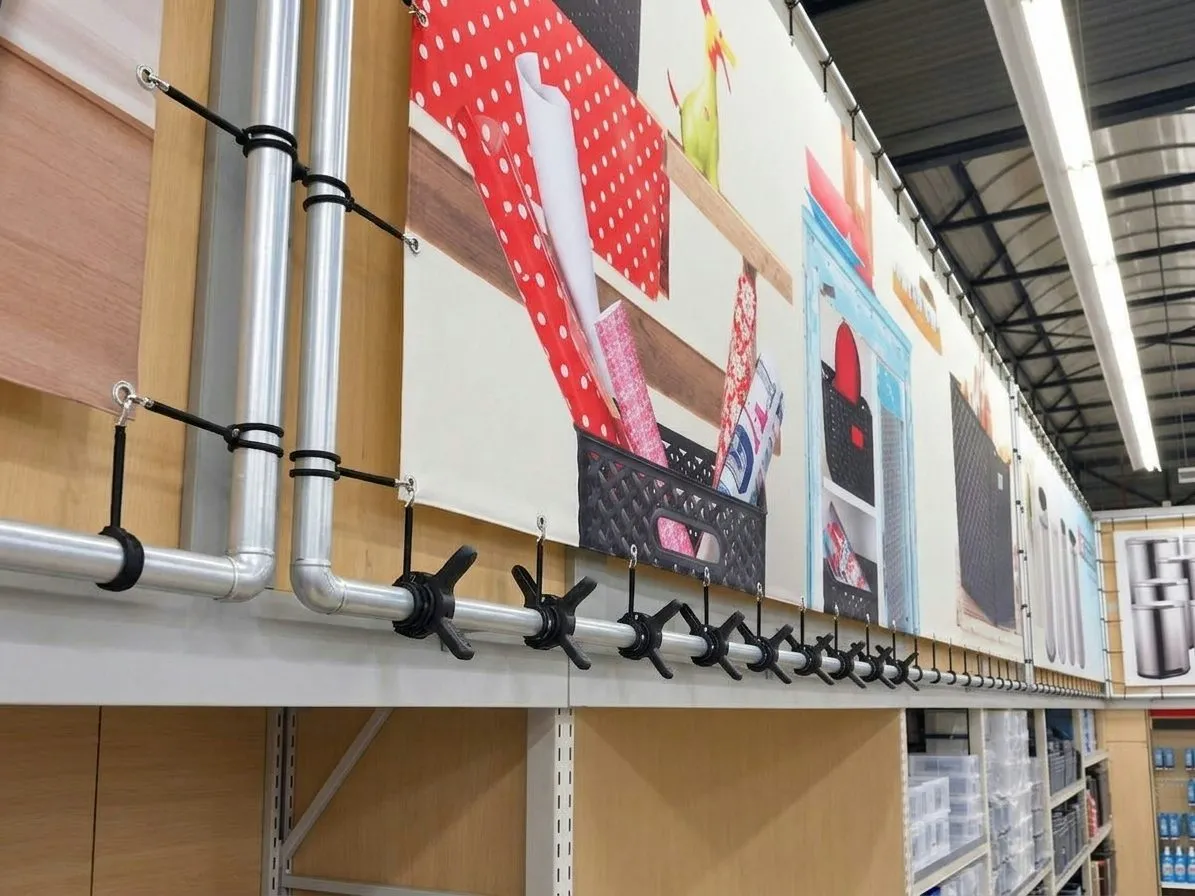

This system is ideal for creating lightweight, demountable constructions such as affordable, easily replaceable banner frames on walls, freestanding display structures, small fences, protective partitions and more. Thanks to the wide variety of connectors, countless configurations are possible, and the system is easy to adapt and expand.
Applications:
- In advertising and signage: banner frames, billboards, wayfinding signs, nameplates, shop interiors, etc.
- - In industry: safety barriers for machinery, warehouse racking, platforms, stairs, etc.
- - Recreation: constructions for sports halls, stadiums, amusement parks, playgrounds, swimming pools, surf spots, campsites, etc.
Components and tubes are available directly from stock in mill finish and can be powder-coated in any RAL colour on request (at an extra cost). Aluminium EN AW 6060 T66.

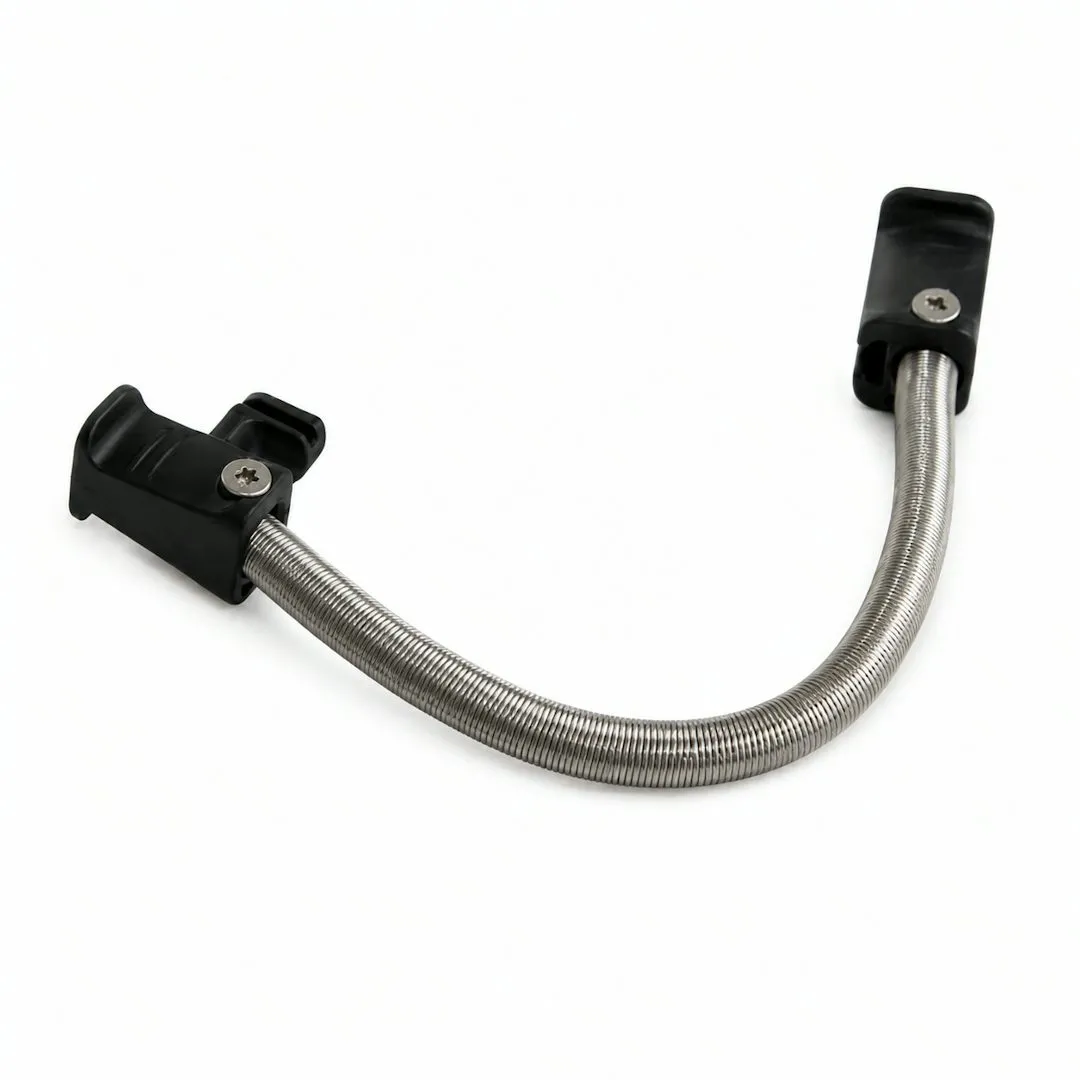

Connecta tubes can also be supplied cut to size, complete with accessories such as elastics, S-hooks, bungee cords and Stormfix tensioners.
Technical information
| Medium | Tube & aluminium cast parts |
|---|---|
| Application | Indoor and outdoor use |
| Lighting | Illuminated and non-illuminated |
| Light source | Front-lit > SlimLine S |
| Configuration | Single-sided |
| Components | S-hook, rubber ring, Stormfix tensioners |
Availability and lead times for supply through 3:rock are confirmed on quotation.
